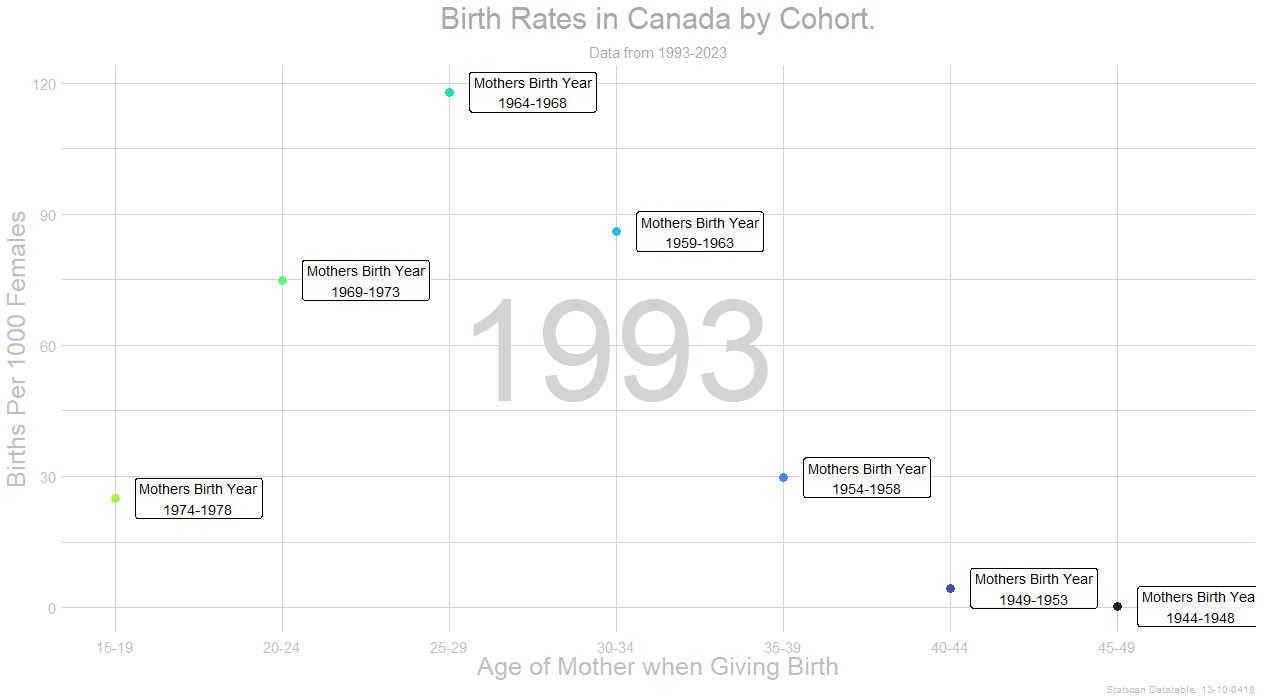

[OC] Birth Rates in Canada By Cohort 1993 – 2023

2 comments

1. Data From [Statscan 13-10-0418](https://www150.statcan.gc.ca/t1/tbl1/en/tv.action?pid=1310041801), Code in R

   library(scales)
   library(cansim)
   library(tidyverse)
   library(ggplot2)
   library(janitor)
   library(lubridate)
   library(glue)
   library(feasts)
   library(fpp3)
   library(ggrepel)
   library(magrittr)
   library(viridis)
   library(gganimate)

   tlb_nm_fer <- ’13-10-0418′
   fer_dat_raw <- get_cansim(tlb_nm_fer) |> clean_names()

   theme_set(theme_minimal() +
   theme(
   axis.title = element_text(size = 15),
   panel.grid = element_blank(),
   plot.title = element_text(hjust = 0.5, size = 30, color = ‘darkgrey’),
   plot.subtitle = element_text(hjust = 0.5, size = 15, color = ‘darkgrey’)
   ))

   dat_fert_all <-
   fer_dat_raw |>
   filter(geo == ‘Canada, place of residence of mother’ &
   (
   str_detect(characteristics, ‘Age-specific fertility rate, females’) # |
   #str_detect(characteristics, ‘Crude birth rate, live births per 1,000 population’)
   )
   ) |>
   mutate(yr = as.integer(ref_date)) |>
   mutate(age_group = str_squish(str_replace(str_remove(str_remove(characteristics, ‘Age-specific fertility rate, females’), ‘years’), ‘\s+to\s+’,’-‘))) |>
   #filter(yr %in% range(yr)) |>
   select(yr, value, age_group)

   dat_fert_cohort <-
   dat_fert_all |>
   mutate(age_group_min = as.integer(str_extract(age_group, ‘^([0-9]+)\-([0-9]+)$’, group = 1) ) ,
   age_group_max = as.integer(str_extract(age_group, ‘^([0-9]+)\-([0-9]+)$’, group = 2) )
   ) |>
   mutate(
   cohort_youngest = yr – age_group_min ,
   cohort_oldest = yr – age_group_max
   ) |>
   mutate(
   cohort = glue(‘{cohort_oldest}-{cohort_youngest}’)
   ) |>
   mutate(age_group = factor(fct_relevel(age_group, sort(unique((age_group)))), ordered = TRUE)) |>
   mutate(cohort = factor(fct_relevel(cohort, sort(unique((cohort)))), ordered = TRUE))

   ########################
   # Use this for ALL Cohorts
   #
   all_cohorts <-
   tibble(cohort_youngest = seq(2008, 1900, by = -5),) |>
   mutate(cohort_oldest = cohort_youngest – 4,
   cohort = glue(‘{cohort_oldest}-{cohort_youngest}’)) |>
   distinct(cohort)

   ########################
   # Use this for Cohorts, that are in most recent data set only
   cohorts <-
   dat_fert_cohort |>
   filter(yr == max(yr) ) |>
   distinct(cohort)

   cohorts <- all_cohorts

   p_dat <-
   dat_fert_cohort |>
   filter(cohort %in% cohorts$cohort)

   p_dat_cohort_lbl <-
   p_dat |>
   #filter(age_group_max == max(age_group_max), .by = cohort) |>
   select(cohort, age_group, value, yr)

   p_dat_bg_lbl <-
   p_dat |> mutate(
   age_group = mean(range(as.integer(age_group))),
   value = mean(range(value ))
   ) |>
   distinct(age_group, value, yr)

   yr_rng <- range(p_dat$yr)

   anim <-
   p_dat |>
   ggplot(aes(
   x = as.integer(age_group),
   y = value
   )) +
   geom_text(
   data = p_dat_bg_lbl,
   mapping = aes(
   label = as.character(yr),
   x = as.integer(age_group),
   y = value
   ),
   inherit.aes = FALSE,
   size = 50,
   color = ‘lightgrey’
   ) +
   geom_point(size = 4, aes(color = as.character(cohort))) +
   geom_line(mapping = aes(
   color = as.character(cohort),
   group = cohort,
   linetype = as.character(cohort)

   ),
   linewidth = 1.2)+
   geom_label(
   data = p_dat_cohort_lbl,
   mapping = aes(
   label = glue(“Mothers Birth Yearn{cohort}”),
   group = as.character(cohort)
   ),
   nudge_x = 0.5,
   alpha = 0.75,
   hjust = 0.5,
   color = ‘black’,
   fill = ‘white’,
   size =5
   ) +
   scale_color_viridis_d(option = ‘H’) +
   scale_fill_viridis_d(option = ‘H’) +
   scale_x_continuous(breaks = sort(unique(as.integer(p_dat$age_group))),
   labels = (.x){
   levels(p_dat$age_group)[.x]
   }) +
   labs(
   x = glue(‘Age of Mother when Giving Birth’),
   y = glue(‘Births Per 1000 Females’),
   title = ‘Birth Rates in Canada by Cohort.’,
   subtitle = glue(‘Data from {yr_rng[1]}-{yr_rng[2]}’),
   color = glue(‘Birth/Cohort of Mother’),
   linetype = glue(‘Birth/Cohort of Mother’),
   caption = glue(‘Statscan Datatable: {tlb_nm_fer}’)
   ) +
   guides(color = ‘none’,
   linetype = ‘none’,
   fill = ‘none’
   ) +
   theme(
   panel.grid.major.y = element_line(color = ‘lightgrey’, linewidth = 0.01, linetype = ‘solid’),
   panel.grid.minor.y = element_line(color = ‘lightgrey’, linewidth = 0.01, linetype = ‘solid’),
   panel.grid.major.x = element_line(color = ‘lightgrey’, linewidth = 0.01, linetype = ‘solid’),
   axis.text.x = element_text(angle = 0, size = 15, hjust = 0.5, vjust = 0, color = ‘grey’),
   axis.text.y = element_text(size = 15, color = ‘grey’),
   axis.title = element_text(size = 25, color = ‘grey’),
   legend.title = element_text(angle = 0, size = 14, hjust = 0.5, vjust = 0, ),
   plot.caption = element_text(color = ‘grey’, size = 10)
   ) +
   transition_reveal(yr) +
   enter_fade() +
   exit_fade() +
   ease_aes(‘linear’)

   ap <-
   animate(anim,
   nframes = (length(unique(p_dat$yr)) * 40),
   fps = 10,
   end_pause = 40,
   start_pause = 20,
   width = 1261, # Set width in pixels
   height = 700
   )
   ap
   anim_save(file.path(‘images’, “cohort_birth_rates_by_age_and_year.gif”),
   animation = ap)
