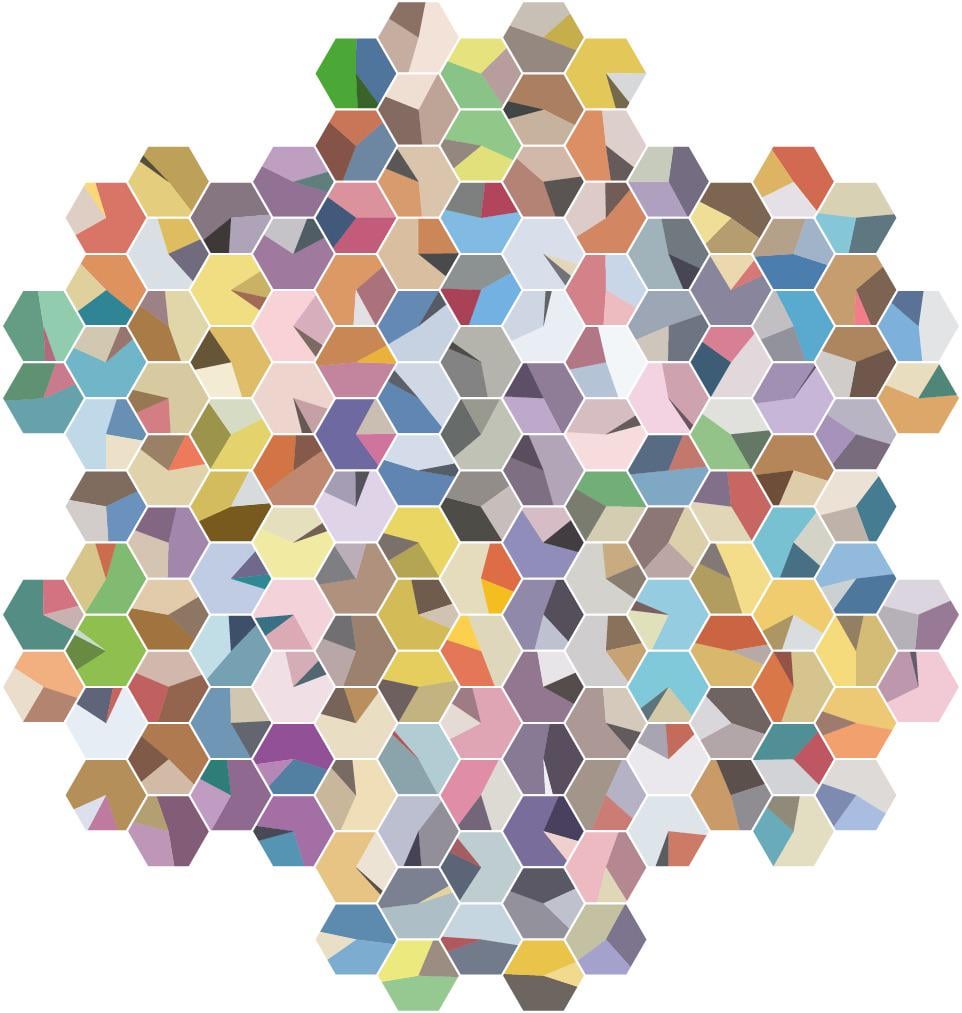

This is a collection of 151 hexagonal pie charts arranged in columns, top to bottom, left to right, representing the proportions of the top 3 dominant colors of each of the original 151 Pokémon.
* I began with the official Sugimori art found on the veekun archive
* I stripped out transparent backgrounds and “dark colors”, computed by transforming RGB to Adobe Luma
* I converted RGB to CIE LAB, a “perceptually uniform” color space, so that Euclidean distance would correspond to human perceptual color difference
* I ran k-means clustering with 3 clusters and extracted the cluster centers, then associated each pixel back to a cluster to get proportional weights
* I used an SVG library to manually draw each pie chart alongside mathematics for rotations, trigonometry, hexagonal geometry, clip paths, randomizing the starting angle of the pie chart, a coordinate system, etc.
* Figuring out a nice way of representing 151 hexagons was the most manual part; I ended up settling on a hexagonal grid of size 8 with 169 hexagons, which means I only had to remove 18 = 6 x 3 = 3 per side. I removed the corners, and then removed 2 more from each side in a symmetric way, and ended up with this snowflake pattern

It’s interesting to see clusters of 2-3 similarly colored hexagons representing the evolutions, as well as to compare to the original images to see what the algorithm picked up.

I’ll link a GitHub with these methods in a general purpose Python library if people are interested.

Posted by rijuvenator

9 comments

  1. Beautiful! Great work. Love that you shared the procedure 🙂

  2. That is really visually … great. This data is indeed beautiful.

  3. Original 151… Tell me you are over 30 without saying it.

  5. Dope. Are they in order, and if so where does it start? Upper-ish left? If I squint I can convince myself I see bulba/char/squirt evolutions.

  6. Hey! I’m working on a color picking program right now and I’ve been looking at k means clustering as a way to pull the top 3 or 5 colors from an image. Do you feel that k means clustering merged some colors with such a small k value?

    I’ve been going back and forth on how to best select my k value to get the true dominant colors rather than a mesh of two or three combined.

    I love the project! I’d be super interested to look at the github project.

  8. Finally a fucking submission that qualifies for this subs title.

    Great job!!

  9. Just to make fully sure I complied with the rules of this sub:
    * The original data source is the Sugimori art from the veekun archive [[link](https://veekun.com/dex/downloads)]
    * I used Python with several libraries, including Pillow, svg.py, numpy, pandas, scikit-learn, and scikit-image
    * Here is the GitHub with the code I wrote with installation instructions and explanations of the parameters [[link](https://github.com/rijuvenator/pokemon-colors)]
