Data Source: HWRF data from the NCEP NOMADS server
Analysis Tools: Python and ParaView

Data link: https://nomads.ncep.noaa.gov/pub/data/nccf/com/hwrf/

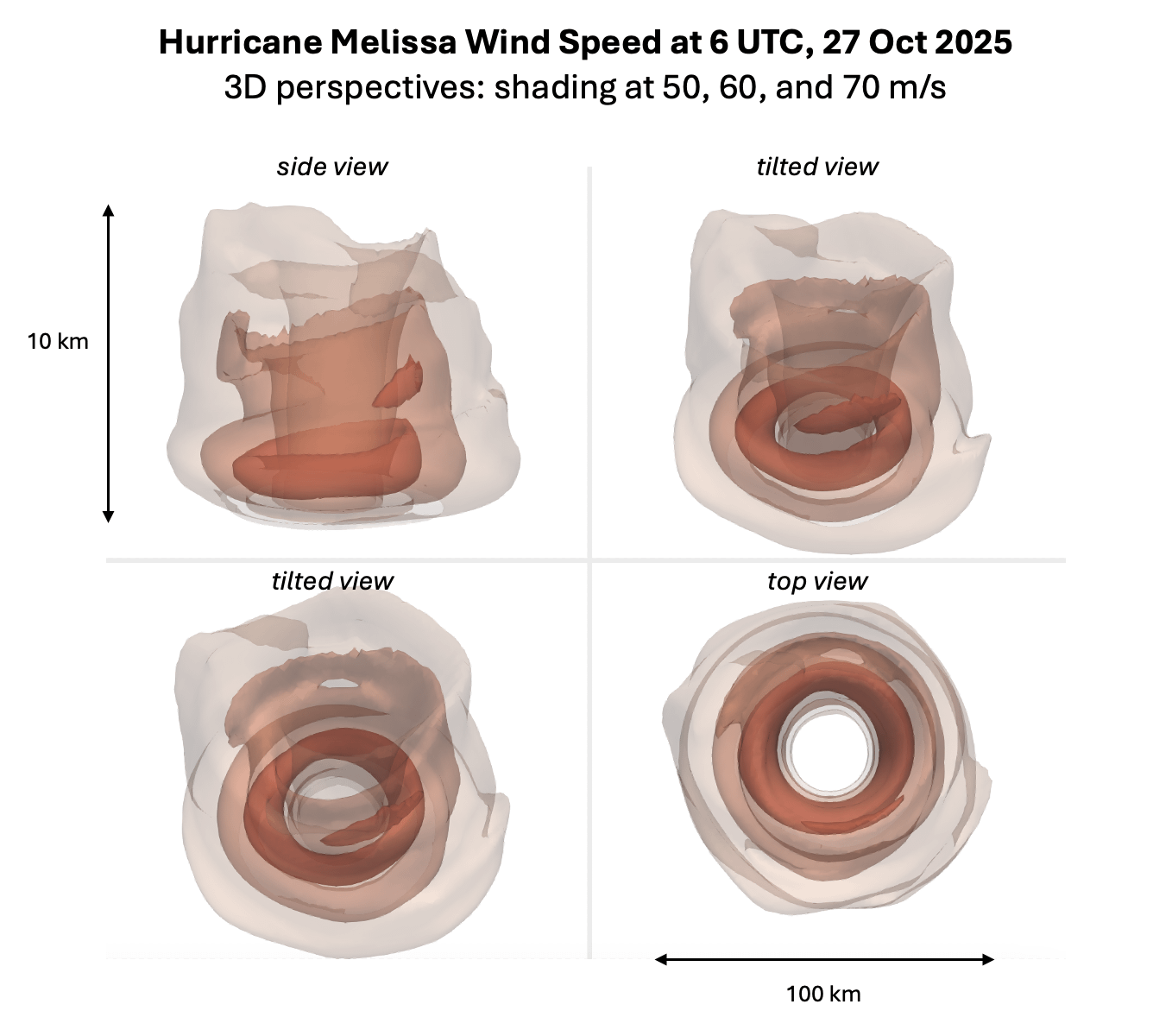

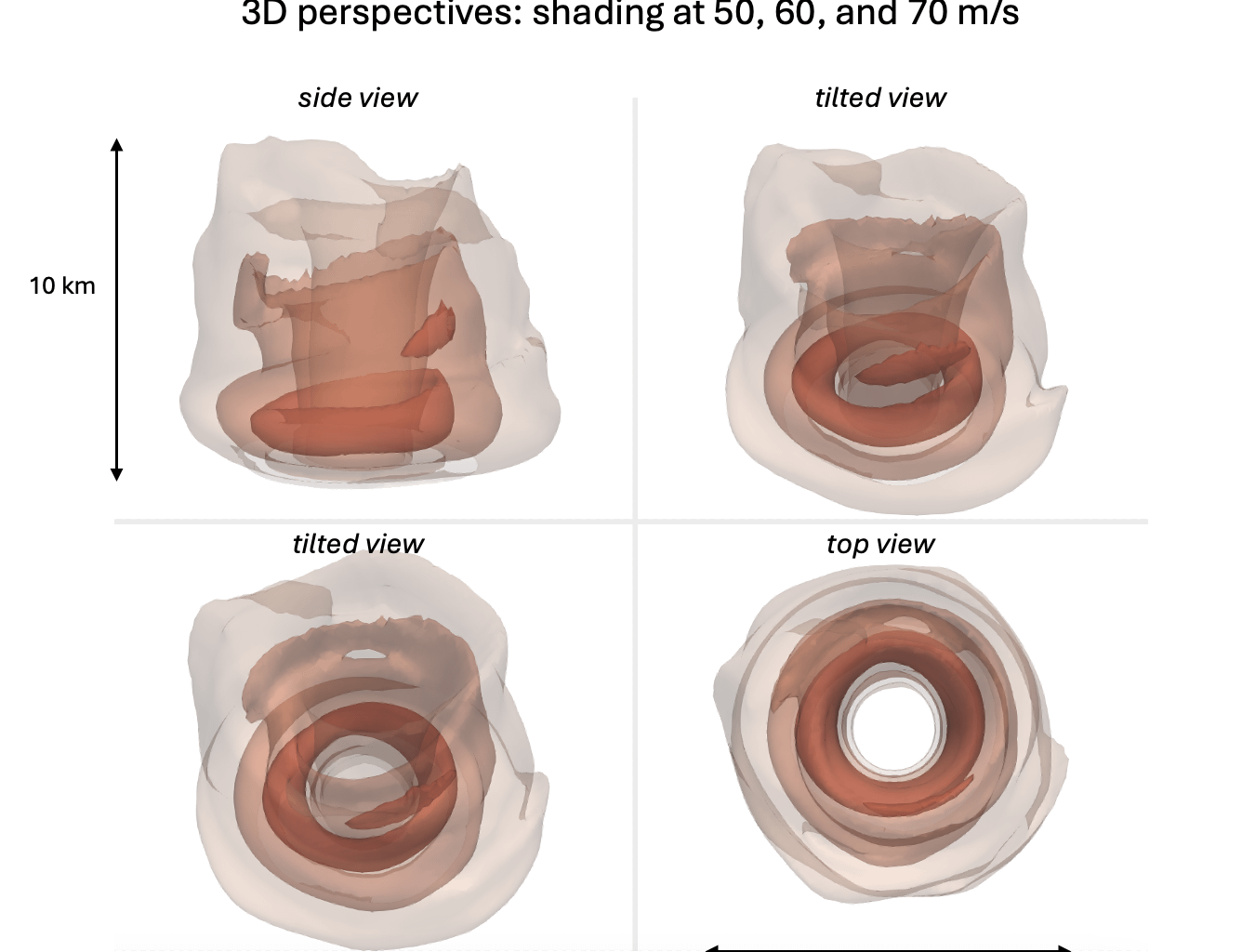

This image shows 3 isosurfaces of wind speed (50, 60, and 70 m/s) from a side view at the upper left, rotating to an overhead view in the bottom right. The data is from the initial conditions (zero hour forecast) of the HWRF model.

This will be a devastating event for Jamaica, Haiti and the Dominican Republic, Eastern Cuba, and the Southeast Bahama & Turks and Caicos. Please see hurricanes.gov for forecast and impact information.
