Clawdmeter is a DIY ESP32-S3-powered desk dashboard that displays Claude Code token usage on a 2.16-inch AMOLED screen so you know when you’re about to reach the limits in real time.
It’s mostly a firmware project since it relies on off-the-shelf hardware (Waveshare ESP32-S3-Touch-AMOLED-2.16). It leverages the LVGL library for its graphics user interface, the NimBLE stack for Bluetooth LE (BLE) communication, and also functions as a HID keyboard for shortcuts using the buttons from the unit.
We previously covered Waveshare ESP32-S3-Touch-AMOLED-1.8 with a 1.8-inch display, but never the 2.16-inch variant, so let’s have a quick look at the hardware first.
ESP32-S3-Touch-AMOLED-2.16 specifications:
Wireless MCU – Espressif Systems ESP32-S3R8
CPU – Dual-core Tensilica LX7 @ up to 240 MHz with vector instructions for AI acceleration.
Memory – 512KB RAM, 8MB PSRAM
ROM – 384KB
Connectivity – 2.4 GHz WiFi 4 and Bluetooth 5.0 LE
Storage
16MB NOR flash
MicroSD card slot
Display
2.16-inch AMOLED display
480 x 480 resolution, 16.7M colors
100,000:1 contrast ratio, 600 cd/m2 brughtness, 178° viewing angle
CO5300 QSPI display driver
CST9220 capacitive touch I2C controller
Audio
ES8311 low-power mono audio codec
ES7210 audio ADC
2x microphones with echo cancellation circuitry
Speaker pads
USB – 1x USB Type-C port for power and programming
Sensors – QMI8658 6-axis IMU (3-axis accelerometer + 3-axis gyroscope)
Expansion – 9 pads with GPIOs, UART, VBUS, 3.3V, and GND
Misc
Power, Boot, and User (GPIO18) buttons
PCF85063 RTC chip
On-board chip antenna and IPEX antenna connector
Power
5V via USB-C port
2-pin MX1.25 connector for optional 3.7V Lithium battery
AXP2101 PMIC for USB-C and battery power management
Dimensions – 46 x 46 x 22.5 mm
Waveshare provides support for the ESP-IDF framework and the Arduino IDE, and offers various code samples for each, including the ESP-Brookesia firmware. They also published tutorials to use XiaoZhi AI, OpenClaw, and ESP-Claw with the device. You’ll find all the resources to get started on the documentation website.
Back to the ClawdMeter project. It pairs with your laptop over Bluetooth, displays pixel-art Clawd animations that speed up as Claude Code usage rate climbs, shows stats, and the two side buttons send Space and Shift+Tab over BLE HID for Claude Code’s voice mode and mode-toggle shortcuts.
ClawdMeter UI from left to right: Animation, Usage, and Bluetooth configuration
The firmware is written in C using Platform IDE with the help of Claude. The code looks decent and uses constants instead of hard-coded coordinates, as recently seen in some other projects. That means you can probably port it fairly easily to other ESP32 platforms with different display resolutions.
If you’d like to reproduce the exact same setup, you can purchase the ESP32-S3-Touch-AMOLED-2.16 controller for about $30 on AliExpress, Amazon ($40.99), or the Waveshare store with or without a battery (saves about $2). However, as noted by various X users, there are various ways to implement such a Claude Code meter, for instance, a taskbar app or other widget running on the host, or an app to show the usage on a USB information display. More details about the ClawdMeter can also be found on the project’s website.

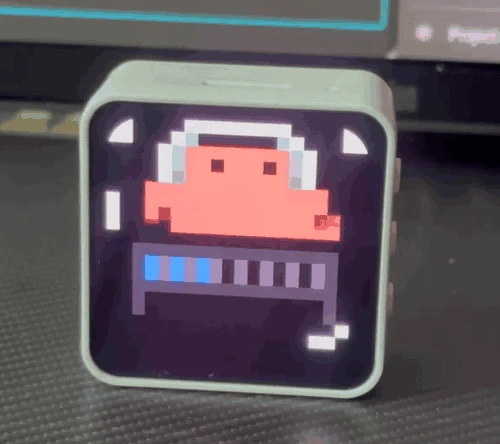

ClawdMeter animation
