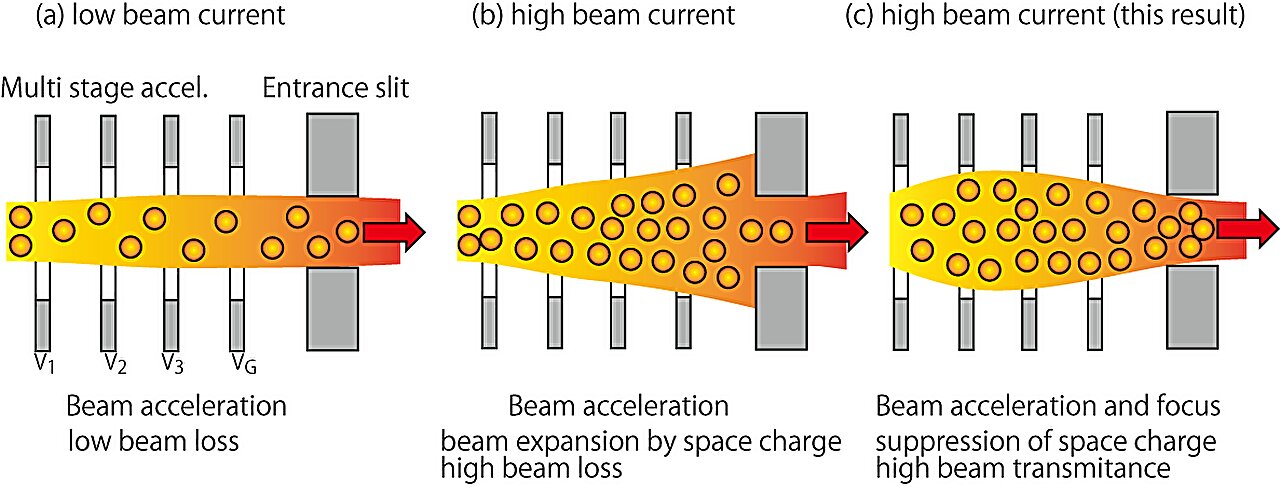

Variation of beam shape inside the multistage accelerator. (a) Beam trajectory at low beam current and (b) beam expansion at high beam current. (c) In the present study, optimization of the electrode voltages enabled both acceleration and focusing of the beam, resulting in a higher beam current. Credit: National Institute for Fusion Science
Nuclear fusion, which operates on the same principle that powers the sun, is expected to become a sustainable energy source for the future. To achieve fusion power generation, it is essential to confine plasma at temperatures exceeding one hundred million degrees using a magnetic field and to maintain this high-energy state stably.
A key factor in accomplishing this is the electric potential inside the plasma. This potential governs the transport of particles and energy within the plasma and plays a crucial role in establishing a state in which energy is effectively confined and prevented from escaping. Therefore, accurately measuring the internal plasma potential is essential for improving the performance of future fusion reactors.
A non-contact diagnostic technique called the heavy ion beam probe (HIBP) is used to measure plasma potential directly. In this method, negatively charged gold ions (Au⁻) are accelerated and injected into the plasma.
By detecting how their charge state changes through interactions with the plasma, the electric potential inside the plasma can be inferred with high sensitivity. However, obtaining high-precision signals requires a strong and stable ion beam.
Although advances in negative ion sources have increased the available beam current, efficiently transporting and injecting high-current beams into the accelerator has remained difficult, limiting the achievable diagnostic precision.
How the HIBP system measures plasma
In the Large Helical Device (LHD), the HIBP system has been developed to measure electric potential in plasmas.

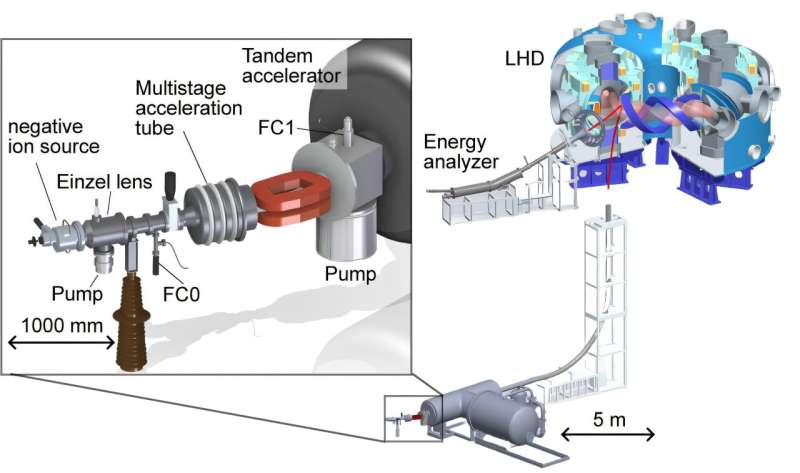

The Large Helical Device (LHD) and the heavy ion beam probe (HIBP) system. The inset on the left shows an enlarged view of the section from the negative ion source to the injection side of the tandem accelerator. Credit: National Institute for Fusion Science
In this system, a gold negative ion (Au⁻) beam is injected into a tandem accelerator, converted into a gold positive ion (Au⁺) beam, and further accelerated up to 6 mega–electron volts (MeV) at the accelerator’s exit before being injected into the plasma.
The beam that becomes Au²⁺ through collisions with the plasma passes through the magnetized plasma, and by measuring the energy difference between the incident Au⁺ beam and the Au²⁺ beam after it traverses the plasma, the electric potential at the position where Au²⁺ was produced can be determined.
To obtain a clear and precise potential signal, a higher injection current into the plasma is required.
Although the output current of the Au⁻ ion source had been successfully increased, the injection beam current into the tandem accelerator could not be increased in direct proportion, which remained a significant challenge.
-

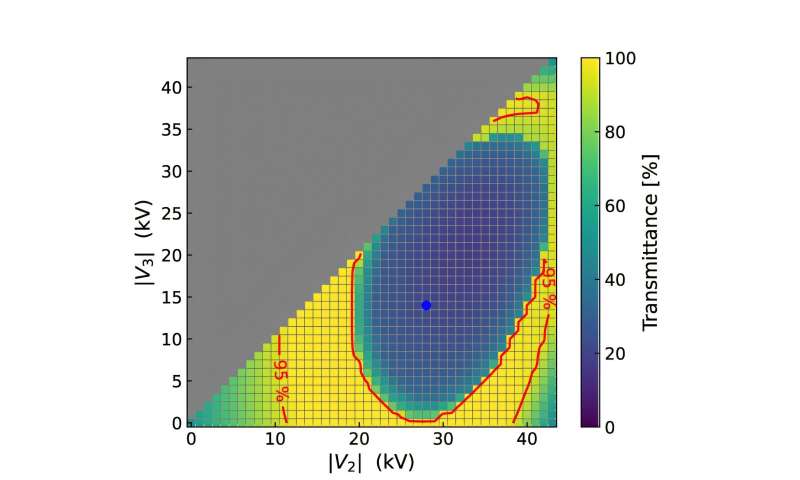

Beam transmission map as a function of electrode voltages V₂ and V₃ in the multistage accelerator. The blue circle indicates the voltage setting before optimization. By optimizing V₂ and V₃, an increase in the transmitted negative ion beam current can be expected. Credit: National Institute for Fusion Science
-

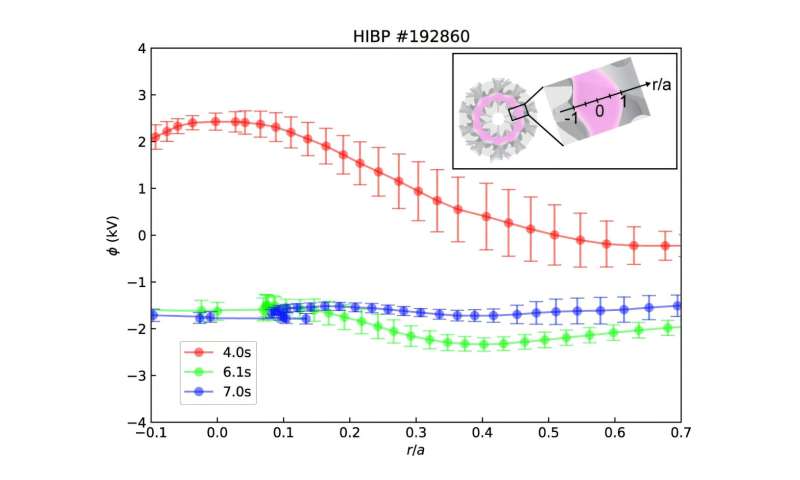

Variation of the plasma potential profile associated with changes in the plasma state. The horizontal axis represents the plasma radius (r/a = 0 corresponds to the plasma center, and r/a = 1 to the plasma edge). Positive and negative potential changes, as well as variations in the profile shape, were clearly observed. Credit: National Institute for Fusion Science
Solving the beam transport bottleneck
To identify the cause of this limitation, a research team analyzed the heavy-ion beam transport efficiency on the low-energy side—from the negative ion source to the entrance of the tandem accelerator—using the ion-beam transport simulation code IGUN. The work is published in the journal Nuclear Fusion.
The simulations revealed that when the Au⁻ beam current is below 10 microamperes (µA), the beam can pass through the entrance slit during the acceleration. However, at higher beam currents, the beam expands due to the space-charge effect, resulting in significant beam loss before entering the tandem accelerator.
For heavy-ion beams such as gold, this space-charge-induced limitation becomes particularly pronounced even if the output current from the negative ion source is increased.
To improve beam transport efficiency, the team proposed using the multistage accelerator located between the ion source and the tandem accelerator, not only for acceleration but also as an electrostatic lens by optimizing its voltage distribution.
Numerical simulations demonstrated that by optimizing the voltage allocation of the multistage electrodes, a high-transmission region exceeding 95% could be achieved, significantly enhancing the beam transport efficiency compared with the conventional voltage configuration.
Subsequent plasma experiments confirmed the validity of this approach, showing that the Au⁻ beam current injected into the accelerator increased by a factor of two to three.
