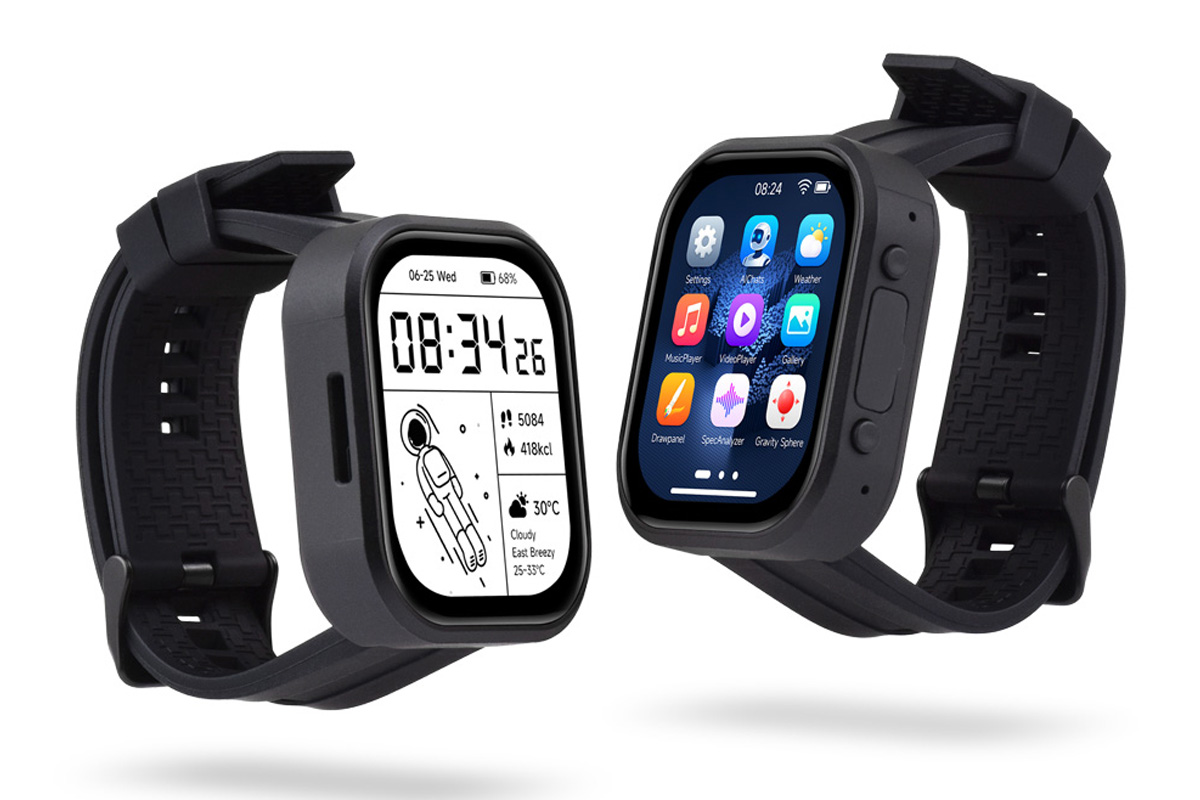

Waveshare has recently released the ESP32-S3 2.06-inch AMOLED Touch, an ESP32-S3-based watch devkit with Wi-Fi 4, Bluetooth 5, and offline voice recognition in a watch-style enclosure.
We have written about various ESP32-S3-powered smartwatches in the past. Some examples include the TinyWatch S3 open-source device with various sensors, but no battery or a strap, and the more complete LILYGO’s T-Watch S3 with LoRa, audio, and a built-in battery. Compared to both of those, the Waveshare ESP32-S3 watch stands out with a 2.06-inch AMOLED capacitive touchscreen, a 6-axis IMU, two digital microphones, an ES8311 audio codec, an RTC (PCF85063), and AXP2101 PMIC with lithium battery support. The watch also features a microSD card slot, a USB Type-C port, programmable buttons, and reserved I2C/UART/USB headers for communications.
ESP32-S3-Touch-AMOLED-2.06 specifications:
- SoC – Espressif ESP32-S3R8
- CPU – Dual-core Tensilica LX7 microcontroller up to 240 MHz with vector instructions for AI acceleration
- Memory – 8MB PSRAM
- Wireless – WiFi 4 and Bluetooth 5.0 LE + Mesh connectivity
- Storage – 32MB SPI flash, microSD card socket
- Display
- 2.06-inch AMOLED, 410 x 502 resolution, 16.7M colors, 600cd/m² brightness (CO5300 QSPI controller)
- Capacitive touch with FT3168 controller (I2C)
- Audio
- Dual digital mic with ES7210 echo cancellation via ES8311 codec
- Speakers for audio out
- USB – USB Type-C port for power and programming
- Sensor – QMI8658 6-axis IMU (Accel + Gyro)
- Misc
- PWR & BOOT buttons
- Reserved pads for UART, I2C, USB
- PCF85063 RTC
- Power
- 5V via USB-C port
- 2-pin Li-ion battery connector
- AXP2101 PMIC
- Dimensions
- Watch body – 50.80 x 42.00 mm
- Watch face – 40.51 x 33.09 mm
- Straps – 250 x 20 mm
- Thickness – 13.60 mm
- Weight – TBD
ESP32-S3 Smart Watch Interfaces
The watch can be programmed with either the ESP-IDF framework or the Arduino IDE. More information, including example code setup instructions, hardware documentation, etc., can be found on the wiki. The factory firmware has a graphical interface (shown in the top photo) based on esp-brookesia with touch, display, audio capture, audio playback, clock, gyroscope, photo/video playback, and PMU control.
Factory firmware UI
ESP32-S3 Smart Watch Hardware Overview
The ESP32-S3 watch development kit is available on AliExpress for $31.49 or $34.19 with battery, on Amazon for $38.99, and on the Waveshare official store for $29.99/$31.99.
